Microphone
❖iMartCity enhances your Auditory experience❖
This smartphone video kit is well-suited for video shooting, vlogging, and more with your smartphone.
Lightweight and compact design, it's very convenient to take no matter indoor or outdoor recordings, and on location.
No extra accessories required, you can get a hassle-free audio solution with no compromised sound.
It's well-suited for video shooting, vlogging, podcasting, and more.
Standard Kit (BY-VG330):
BY-MM1 condenser microphone
smartphone clamp
ball head
extension tube
mini tripod
clamp with cold shoe mount
Specifications:
Transducer: | Electret Condenser |
Polar pattern: | Cardioid |
Frequency Response: | 35-18kHz +/-3dB |
Sensitivity: | -42dB+/-1dB/0dB=1V/Pa,1kHz |
Signal to Noise Ratio: | 76dB SPL |
Plug: |
3.5mm TRS and TRRS connector |
Dimensions: |
Microphone Size:Ф22*81mm Extension Tube Length:160-250mm |
Weight: | 455g |
----------------------------------------

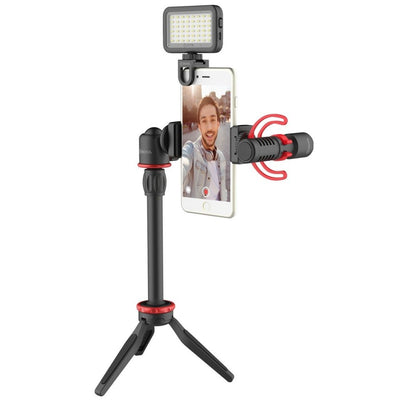

Advanced Kit (BY-VG350):
BY-MM1+ shotgun microphone
LED light
smartphone clamp
ball head, extension tube
mini tripod
clamp with cold shoe mount
Specifications:
Transducer:: | Electret Condenser |
Polar Pattern:: | Super-cardioid |
Frequency Response: | 20Hz-18kHz |
Sensitivity: | -36dB±3dB(0dB=1V/Pa,1kHz) |
Signal to Noise Ratio: | 78dB |
Plug: |
3.5mmTRRS line-out 3.5mmTRS headphone output |
Dimensions: |
Microphone Size:Ф26×100mm Extension tube Length:160-250mm |
Net Weight: |
508g |

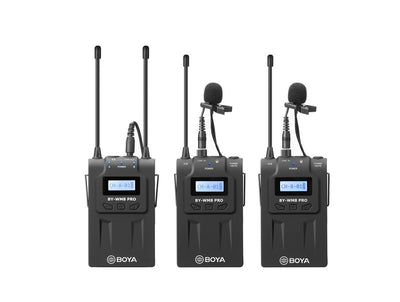

The BOYA BY-WM8 Pro-K2 is an upgraded UHF Dual-Channel Wireless Microphone System for capturing audio with dual subjects. It features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry.
Product Highlights:
• Dual-Channel Wireless Receiver
• 48 Selectable UHF Channels
• Broadcast-Quality Sound
• Includes Two Transmitters and One Receiver
• Selectable Stereo and Mono Mode
• Mic and Line-in
• Selectable Mute function
• Easy-to-read LCD displays
• Automatic LCD-locked Function
• Monitoring sound by headphone output (Receiver)
• Operation range can reach up to 100m(300') (without obstacle)
• Two AA batteries for both transmitter and receiver
Descriptions:
The package is suitable for a wide range of wireless applications such as interviews, electronic newsgathering (ENG), electronic field productions (EFP), film production, business and educational applications, and more.
The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.
The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.
Note: To save battery life, if only use one transmitter, please turn OFF the other channel from the receiver.
- Digital Companding
- Up to 48 Selectable channels
- Dual-Channel
- Up to 32 MHz of transmission bandwidth
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- User-friendly menu operation
- Muting function
- Wide range of accessories adapts the system to most of the requirements
- Locked-plug avoids accidental changing of settings
- Transmission Range: up to 100 meters / 300
Specifications:
System:
Oscillator type: | PLL Synthesized Control Oscillator |
Carrier Frequency Range: | 576.4 MHz-599.9 MHz (Transmitter: A ) 568.6 MHz-592.1 MHz (Transmitter: B ) |
Channels: | 48 |
Frequency response: | 40 Hz to 18 kHz (+/-3dB) |
Operation range: | 100m (300')(without obstacle) |
Operating temperature: | 14° F to 122° F (-10℃ to +50℃) |
Storage temperature: | 14° F to 131° F (-10℃ to +55℃) |
Transmitter:
RF output power: | ≤10 mW |
Antenna: | 1/4λ wire antenna |
Spurious emission: | 250 nW or less |
Audio input connector: | 3.5mm mini jack |
Reference audio input level: | –60 dBV (MIC input, 0 dB attenuation) |
Reference deviation: | ±5 kHz (–60 dBV, 1 kHz input) |
Input frequency range: | 20 Hz-20 KHz |
Distortion: | 0.5% or less |
Power supply: | Two AA size batteries |
Operation time: | About 6 hours |
Dimensions: | 208(H) × 67(W) × 29(L)mm |
Weight: | 80g without batteries |
Receiver:
Antenna: | 1/4λ wire antenna |
Audio input connector: | 3.5mm mini jack |
Signal-to-noise ratio: | 70 dB or more |
Distortion: | 0.5% or less |
Headphone output level: | 30mW (16 Ω) |
Audio output level: | –60 dBV |
Power supply: | Two AA size batteries |
Operation time: | About 4 hours |
Dimensions: | 208(H) × 67(W) × 29(L)mm |
Weight: | 90g without batteries |
Lavalier Microphone:
Transducer: | Back electret Condenser |
Polar pattern: | Omni-directional |
Frequency Range: | 35Hz ~ 18 KHz |
Signal / Noise: | 74dB SPL |
Sensitivity: | -30dB +/-3dB / 0dB=1V/Pa, 1 kHz |
Connector: | 3.5mm locking mini plug |
Length: | 1.2m (4’) |
Designed for videographers on a limited budget and video hobbyists, the BY-WM4 PRO system is a new generation 2.4 GHz wireless microphone, dual-Channel for capturing audio with dual subjects to your smartphones, tablets, DSLR cameras, consumer camcorders, PCs etc.
Product Highlights:
• Dual-Channel Wireless Receiver
• Digital 2.4 GHz Frequency Band
• Super-clear recording sound
• Compatible with smartphones, DSLR cameras, consumer camcorders, PCs etc.
• headphone connector for real-time monitor
• Lightweight and compact for easy carrying
• Easy to use
• Omnidirectional lavalier microphone
• Hard case included
• Standard camera shoe mount and clip included
• Up to 60m (197ft) operation range (without obstacle)
• Power supplied by two AAA batteries for transmitter and receiver
It’s a compact and extraordinarily easy-to-use wireless microphone system for recording crisp and clear speech, and interviews.
Omnidirectional lavalier mic included is suitable for performers who which to exhibit freedom of movement in their visual recordings.
Additionally, the system offers an up to 60m (197ft) line-of-sight operation range.

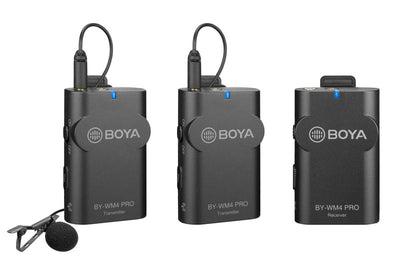

BY-WM4 Pro-K2 consists of two compact body-pack transmitters (TX4 Pro), a portable receiver(RX4 Pro), a Lavalier/lapel microphone, two pieces of omnidirectional lavalier microphones, a 3.5mm TRRS audio cable and a 3.5mm TRS audio cable, which provides immediate out-of-the-box operability for anyone, making it ideal for video, podcast, and mobile journalism applications.
The receiver is built with a 3.5mm mic and 3.5mm headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.
- For mobile Journalists, Vloggers, YouTubers, Podcasters and more.
- Compatible with most Audio/Video equipment, such as Smartphone, Tablet, DSLR, small recorder, Audio Recorder, PC etc.
- Two transmitters can capture dual subjects
- Compact and lightweight bodypack transmitter and receiver
- Electret condenser, omnidirectional lavalier microphone
- With simple gain buttons and a power/pair button, the system is comfortably easy to use.
Specifications:
RF Modulation: | GFSK (Gauss frequency Shift Keying) |
Frequency band: | 2.4GHz (2405-2478MHz) |
Frequency response: | 35Hz-14KHz±3dB |
Signal/Noise: | 84dB or more |
Distortion: | 0.05% or less (32Ω,1 KHz,65mW output) |
RF output level: | 3mW |
Earphone output level: | 32Ω,65mW |
Reception sensitivity: | -90dB +/- 3dB / 0dB=1V/Pa, 1kHz |
Audio input connector: | 3.5mm mini jack |
Operation range: | 60m (197ft) (without obstacle) |
Power requirements: | 3V DC (Two AAA size batteries) |
Consumption power: | Transmitter: 3V/70mA |
Receiver:3V/70mA | |
Dimensions: | Receiver: 45x70x35mm (1.8*2.8*1.4 inches) |
Transmitter: 45x70x35mm (1.8*2.8*1.4 inches) | |
Weight: | Receiver: 47g (1.7 oz) |
Transmitter: 47g (1.7 oz) |

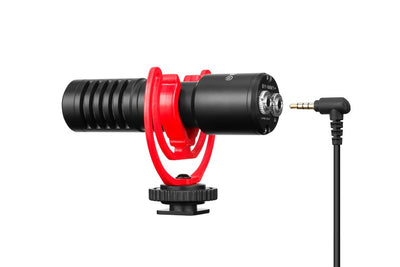

The BOYA BY-MM1 Pro is a dual-capsule condenser shotgun microphone, capturing a high-quality, off-axis sound from both front and rear sides.
Highlighted Features:
• Dual-Capsules super-cardioid microphone, capturing front and rear sound from the devices.
• Front/F+R/Rear modes designed for various demands
• Compatible for smartphones, tablets, DSLRs,consumer camcorder,PCs and more
• Durable aluminium construction, plug and play operation,3.5mm headphone output for audio monitoring features
• Excellent off-axis noise rejection,low-noise circuitry and high-quality speech and dialogues
• Rycote®Lyre®shock mount, fur windscreens, foam windshields included
Its built-in 3.5mm output cable can compatible with smartphones, tablets, DSLRs by switching between camera and smartphone mode. It provides practical functions for two-person recording, vlogging, mobile journalism and much more.
The 3.5mm headphone output lets user monitor audio with compatible apps, so you can ensure the integrity of audio.
Included detachable Rycote®Lyre®shock mount provides a reliable and solid construction, effectively eliminating noise from vibrations and camera handling.
Specifications:
Acoustic Principle: | Condenser |
Polar Pattern: | Super-cardioid |
Frequency Response: | 45Hz-18kHz |
sensitivity: |
Font:-32+/-3dB(0dB=1V/Pa,at 1KHz) Rear:-44+/-3dB(0dB=1V/Pa,at 1KHz) |
Signal to Noise Ratio: | 80dB S:(f=1KHz,S.P.L=1Pa)N:(A-Weighted curve) |
Output: | 3.5mmTRRS jack |
Weight: | 67.5g(2.4 oz) |
Dimensions: | Ф22*84mm |
The BOYA BY-MM1+ is an upgraded super-cardioid condenser microphone that delivers lower noise and higher sensitivity sound on your smartphones, tablets, DSLRs, consumer camcorder, PCs and more.
Features:
• Compatible with smartphones, tablets, DSLRs, consumer camcorder, PCs and more
• super-cardioid condenser shotgun microphone
• Improved sensitivity and signal to noise ratio
• Plug and play operation
• Durable metal construction
• 3.5mm headphone output
Due to its plug and play operation and no battery required to design, the BY-MM1+ is a perfect audio solution for mobile journalists, vloggers and video hobbyists.
The BY-MM1+ features a compact and rugged aluminium body, while it will not be a heavy burden when recording.
The 3.5mm headphone output lets users monitor and playback audio with compatible apps, so you can ensure the integrity of audio.
Included detachable Rycote® Lyre® shock mount provides a reliable and solid construction, effectively eliminating noise from vibrations and camera handling.
Specifications:
Transducer: | Electret Condenser |
Polar Pattern: | Super-cardioid |
Frequency Response: | 20Hz-18kHz |
Sensitivity: | -36dB±3dB(0dB=1V/Pa,1kHz) |
Signal to Noise Ratio: | 78dB |
Plug: |
3.5mm TRRS line-out 3.5mm TRS headphone output |
Dimensions: | Ф26×100mm(Ф1×3.9") |
Net Weight: | 60g(2.1oz) |
The BOYA cardioid microphone specially designs to improve the sound quality of videos on the basis of build-in microphones.
Product Highlights:
• Compact on-camera microphone
• Compatible with smartphones, DSLRs, Consumer Camcorders, PCs etc.
• Rugged metal construction
• No battery required
• Professional furry windshield included
BOYA BY-MM1 comes out in compact size and light-weight aluminium design, it will not be a heavy burden while shooting. Plug and play design, no need to worry about the battery status. The included anti-shock mount effectively reduces unwanted vibration, cable and handling noise.
Specifications:
Transducer: | Electret Condenser |
Polar pattern: | Cardioid |
Frequency Response: | 35-18KHz +/-3dB |
Sensitivity: |
-42dB +/- 1dB / 0dB=1V/Pa,1kHz |
Signal to Noise Ratio: |
76dB SPL |
Plug: |
3.5mm TRS and TRRS connection |
Dimensions: |
Φ22*81mm |
Net Weight: |
86g |
The BOYA BY-M1DM is a Dual Lavalier Universal Microphone, with a single 1/8" connector, it can be used with smartphones, DSLR cameras, camcorders, audio recorders, PC and other recording devices.
Product Highlights
• Clip-on lapel microphone for Smartphones, cameras, camcorders, audio recorders, tablets, and other audio/video recording devices
• Omni-directional Condenser Microphone
• Excellent for interviews
• Dual-lavalier microphone
• Improved Sensitivity and Signal-to-Noise
• Includes carrying pouch
Descriptions:
It consists of two well-received omnidirectional lavalier microphones and a 4m (13') length cable, it’s perfect for interviews, presentations, podcasts, webcasts, or any situation where more than one subject needs to be recorded.
Its 4m(13’) cable provides 2.8m(9.2’) of the distance between each microphone for comfortable placement, while the included tie clips allow for hands-free use.
- Wide Range of Compatibility
Compatible for Smartphones, cameras, camcorders, audio recorders, tablets, and other audio/video recording devices
- Omnidirectional Polar Pattern
The omnidirectional polar pattern provides an excellent off-axis response, even if a subject turns their head while speaking
- Designed for recording interviews
Dual omnidirectional lavalier microphones can record two sound resources at the same time
- 4m(13’) length cable allows you to use in various situation
- Rugged Metal Power Pack
Specifications:
Transducer: | Electret Condenser |
Polar pattern: | Omni-directional |
Frequency Range: | 65Hz ~ 18KHz |
Signal / Noise: | 74dB SPL |
Sensitivity: | -30dB +/- 3dB / 0dB=1V/Pa, 1kHz |
Output Impedance: | 1000 Ohm or less |
Connector: | 3.5mm (1/8”) 4-pole gold plug |
Power requirement: | LR44 (included) |
Cable length: | 4m(13ft) |
Net weight: | 68g(2.4 oz) |
The BOYA microphones not only support camera devices but also support mobile devices such as iPhone, Tablets, iPad, smartphones, etc. You can record a clear voice with your mobile devices!

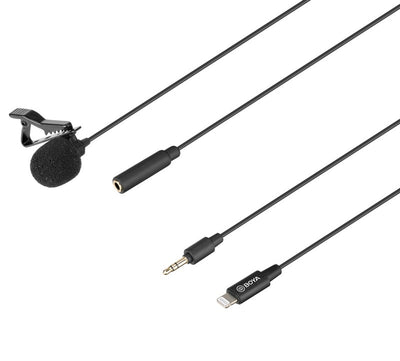

For iOS Devices: (BY-M2 / BY-M2D)
The BOYA BY-M2 / BY-M2D allows connecting directly to iOS devices, such as iPhone, iPad, and iPod touch via Apple MFi-certified Lightning connector. You can choose from single lavalier mic (BY-M2) or dual lavalier mics (BY-M3) according to your habits.
Specifications:
BY-M2: Single lavalier mic
Transducer Principle: | Condenser Microphone |
iOS System Compatibility: | iOS 8.0 or Later |
Polar Pattern: | Omnidirectional |
Signal to Noise Ratio: | 76dB or more |
Frequency Response: | 50 Hz-20 kHz |
Sensitivity: |
-40dB+/-3dB (0dB=1V/Pa, at 1KHz) |
Bit Rate: |
16Bit, 24Bit |
Sampling Rates: |
44.1 / 48 kHz |
Power Requirement: |
Powered via Connection to iOS Device |
Cable Length: |
6m (19.7’) |
Weight: |
46g (1.62oz) |
BY-M2D: Dual lavalier mic
Connector: | Apple MFi certified Lightning connector |
Cable Length: | 6m (19.7’) |
Output: | MFi Certified Lightning Connector |
iOS System Compatibility: | iOS 8.0 or Later |
Sensitivity: | -40+/-3Db (0dB=1V/Pa, at 1KHz) |
Polar Pattern: |
Omnidirectional |
Signal to Noise Ratio: |
76dB or more |
Frequency Response: |
50Hz-20kHz |
Bit Rate: |
16Bit, 24Bit |
Sampling Rates: |
44.1 / 48 kHz |
Power Requirement: |
Supplied by iOS device |
Cable Length: |
6m (19.7’) |
Weight: |
80g (2.82oz) |
----------------------------------------------
For Type-C Devices: (BY-M3 / BY-M3D)
The BOYA BY-M3 / BY-M3D are digital USB Type-C microphone and comprised with the well-received omnidirectional condenser lavalier microphones, which is specially designed for Android devices and others devices with Type-C connector, such as iPad Pro, Mac PC. You can choose from a single lavalier mic (BY-M3) or dual lavalier mics (BY-M3D) according to your habits.
Specifications:
BY-M3: Single lavalier mic
Connector: | Type-C (USB-IF certified) |
Sensitivity: | -40+/-3dB (0dB=1V/Pa,at 1KHz) |
Polar Pattern: | Omnidirectional |
Signal to Noise Ratio: | 76dB or more |
Bit Rate: | 16Bit |
Sampling Rates: |
48 kHz |
Frequency Response: |
50Hz-20kHz |
Power Requirement: |
Via Type-C devices |
Cable Length: |
6m (19.7’) |
Weight: |
44.5g (1.57oz) |

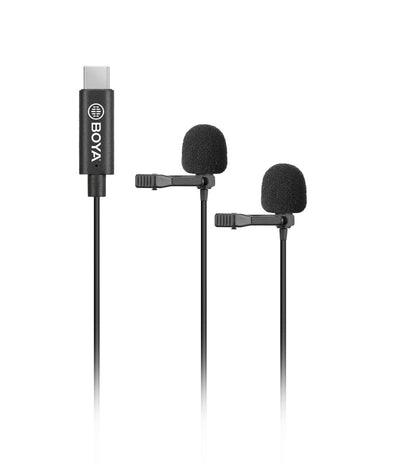

BY-M3D: Dual lavalier mic
Connector: | Type-C (USB-IF certified) |
Sensitivity: | -40+/-3dB (0dB=1V/Pa,at 1KHz) |
Polar Pattern: | Omnidirectional |
Signal to Noise Ratio: | 76dB or more |
Bit Rate: | 16Bit |
Sampling Rates: |
48 kHz |
Frequency Response: |
50Hz-20kHz |
Power Requirement: |
Via Type-C devices |
Cable Length: |
6m (19.7’) |
Weight: |
78.5g (2.8 oz) |
The BOYA BY-M3 is a digital USB Type-C lavalier microphone, which is specially designed for Android devices and others devices with a Type-C connector, such as iPad Pro, Mac PC.
Product Highlights
• Omnidirectional polar pattern
• Compatible with most the Type-C devices
• 6-meter long cable, comfortably adapter to various environments
• 16 bits/48KHz digital resolution
• Low handling noise
• Powered by USB Type-C devices
Descriptions:
With 16 bits/48KHz resolution, it’s well-suitable for podcasting, vlogging, interviews, and more.
Features omnidirectional polar pattern and clip-on design, it could effectively reduce unwanted background noise, and greatly help the mobile devices to pick up high-quality sound recordings.
Up to 6 meters long cable, it allows users to comfortably adapt to various environments.
Specifications:
Connector: | Type-C (USB-IF certified) |
Sensitivity: | -40+/-3dB (0dB=1V/Pa,at 1KHz) |
Polar Pattern: | Omnidirectional |
Signal to Noise Ratio: | 76dB or more |
Bit Rate: | 16Bit |
Sampling Rates: |
48 kHz |
Frequency Response: |
50Hz-20kHz |
Power Requirement: |
Via Type-C devices |
Cable Length: |
6m (19.7’) |
Weight: |
44.5g (1.57oz) |
The BOYA BY-M2 Clip-on Lavalier Microphone helps capture a clear and high-quality sound directly to all kinds of iOS devices such as iPhone, iPad, through the Lightning port.
Product Highlights:
• Omni-directional clip-on microphone
• Detachable design for multiple uses
• Apple MFi certified Lightning connector
• Allows other microphones with 3.5mm TRS output to iOS devices
• No battery required
Descriptions:
It’s an ideal choice for recording interview, vlogs, presentations and more, whether you are shooting video or recording audio using the app of your device.
The product consists of 2 parts, a male 3.5mm TRS to lightning adapter cable and a lavalier mic with a 3.5mm female connector.
The detachable design here allows you also to connect other audio devices with 3.5mm TRS output to your iOS devices, such as RX8 Pro, BY-MM1 etc.
Specifications:
Transducer Principle: | Condenser Microphone |
iOS System Compatibility: | iOS 8.0 or Later |
Polar Pattern: | Omnidirectional |
Signal to Noise Ratio: | 76dB or more |
Frequency Response: | 50 Hz-20 kHz |
Sensitivity: |
-40dB+/-3dB (0dB=1V/Pa, at 1KHz) |
Bit Rate: |
16Bit, 24Bit |
Sampling Rates: |
44.1 / 48 kHz |
Power Requirement: |
Powered via Connection to iOS Device |
Cable Length: |
6m (19.7’) |
Weight: |
46g (1.62oz) |

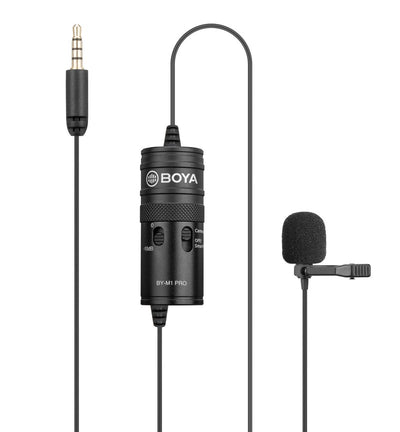

The BOYA BY-M1 Pro is a universal lavalier microphone, which compatible with smartphones, PC, cameras, audio recorders, and other recording devices etc.
Product Highlights:
• Clip-on Mic for Smartphones, DSLRs, camcorders, audio recorders, PC etc.
• High-quality condenser, ideal for video use.
• Low handling noise.
• Includes lapel clip, LR44 battery, foam windscreen,1/4” adapter.
• Playback headphone monitoring in smartphone mode.
• -10dB sound attenuation.
Descriptions:
On its compact body, there are a few special and useful functions that distinguish BY-M1 Pro from other general microphones in the market.
With a -10dB pad switch, it electively reduces unwanted plosive when the subject sound is very loud and close to the microphone, makes sure the recording is always clear. With a 3/8" headphone jack on the bottom, it allows users to monitor sound in smartphone mode.
Specifications:
Transducer: | Electret condenser |
Polar Pattern: | Omni-directional |
Frequency range: | 65 Hz ~ 18 KHz |
Signal/Noise: | 78 dB SPL |
Sensitivity: | -30 dB +/- 3 dB / 0 dB=1V/Pa, 1 kHz |
Output impedance: | 1000 Ohm or less |
Battery type: | LR44 included (compatible with LR44, 357, and SR44) |
Connector: | 3.5mm (1/8”) 4-pole gold plug |
Pad Switch: | 0/-10dB |
Dimensions: | 6.0m |
Weight: | 58g |

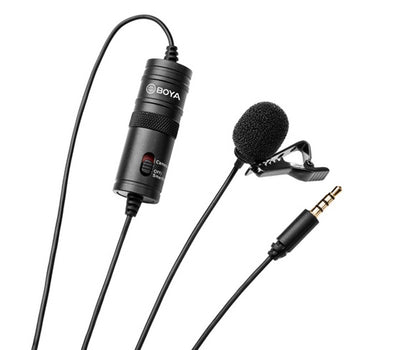

BOYA BY-M1 is an Omni-directional lavalier microphone, perfect for video use, designed for Smartphones, DSLR, Camcorders, Audio recorders, PC etc.
Product Highlights:
• Clip-On Mic for Smartphones, DSLR, Camcorders, Audio recorders, PC etc.
• Omni directional condenser microphone
• High-quality condenser is ideal for video use
• Low handling noise
• Includes lapel clip, LR44 battery, foam windscreen, 1/4” adapter
Description:
The lavalier microphone features an Omni pickup pattern, for full, 360-degree coverage.
An integrated 6-meter (20”) cable with a 3.5mm 4-pole gold plug, can connect directly to Smartphones, most cameras.
Using the microphone
• For Smartphone
Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone
The power is shut down.
• For DSLR, Camcorders, Audio recorders, PC etc.
Switch on the microphone. Slide the ON/OFF up to ON
Specifications:
Polar pattern: | Omini-directional |
Frequency response: | 65Hz-18KHz |
Signal/Noise: | 74dB or more |
Output Impadence: | 1000Ω or less |
Power requirement: | LR44 |
