Regular price $52.50 USD

SF-401PLUS

New ver 4.0 Frequency Counter SF-401 PLUS SURECOM Portable CTCSS/DCS Decoder



New ver 4.0 Frequency Counter SF-401 PLUS SURECOM Portable CTCSS/DCS Decoder




Introduction:

  • The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.
    it is the tool of choice for maintenance personnel ,test frequency and signal strength of wireless enthusiasts.
  • This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
  • There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
  • Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
  •  Work by  TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
  • This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF
  • DMR Radio signal e frequency counter.
  • Easy Battery level
  • digital mode for DMR radio only, not for other digital device



Feature & Specification:

  •    Frequency range: 27Mhz-3000Mhz
    ! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
  •   CTCSS/DCS Decoder  (must be 136-174/400-520MHz)
  •    Frequency counter for DMR radio
  •    Frequency digital 0.000  or 0.0000  ( +-0.001)
  •    Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
  •     Frequency Response time:  0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
  •     TFT Color Display 240 x 320 ,LCD Dim level setting
  •     Build-in  Li-ion battery
  •     Net Weight: 113g
  •     4 buttons control
  •     Auto power off  1-9minutes
  •     Charging battery LED indicator



Power On/Off
Power On –Press and Hold down the [black key] by 2 second
Power Off –Press and Hold down the [black key] by 4 second of number count down to 0
Charging the battery
Plug the Power cord into adaptor , Micro USB connected SF-401, The Led indicating:
 *The RED Led is light - Charging
 * The Green Led is light - Full
How to check Frequency measuring.    See PIC.3



The transmitter near the frequency counter antenna , see the signal reception conditions is zone green, you can test. Please see Pic.3
cautions:
e.g. display 1800.000Mhz  , The transmitter distance is too close to the frequency counter will affect the test results, , the signal bar is red .(see Pic.1)
e.g. display 0.000, , The transmitter distance is too far to the frequency counter and signal is weak ,will affect the test results,  the signal bar is low .(see Pic.1)
Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance) .



New ver 4.0 Frequency Counter SF-401 PLUS SURECOM Portable CTCSS/DCS Decoder



How to check Frequency of Digital DMR Radio

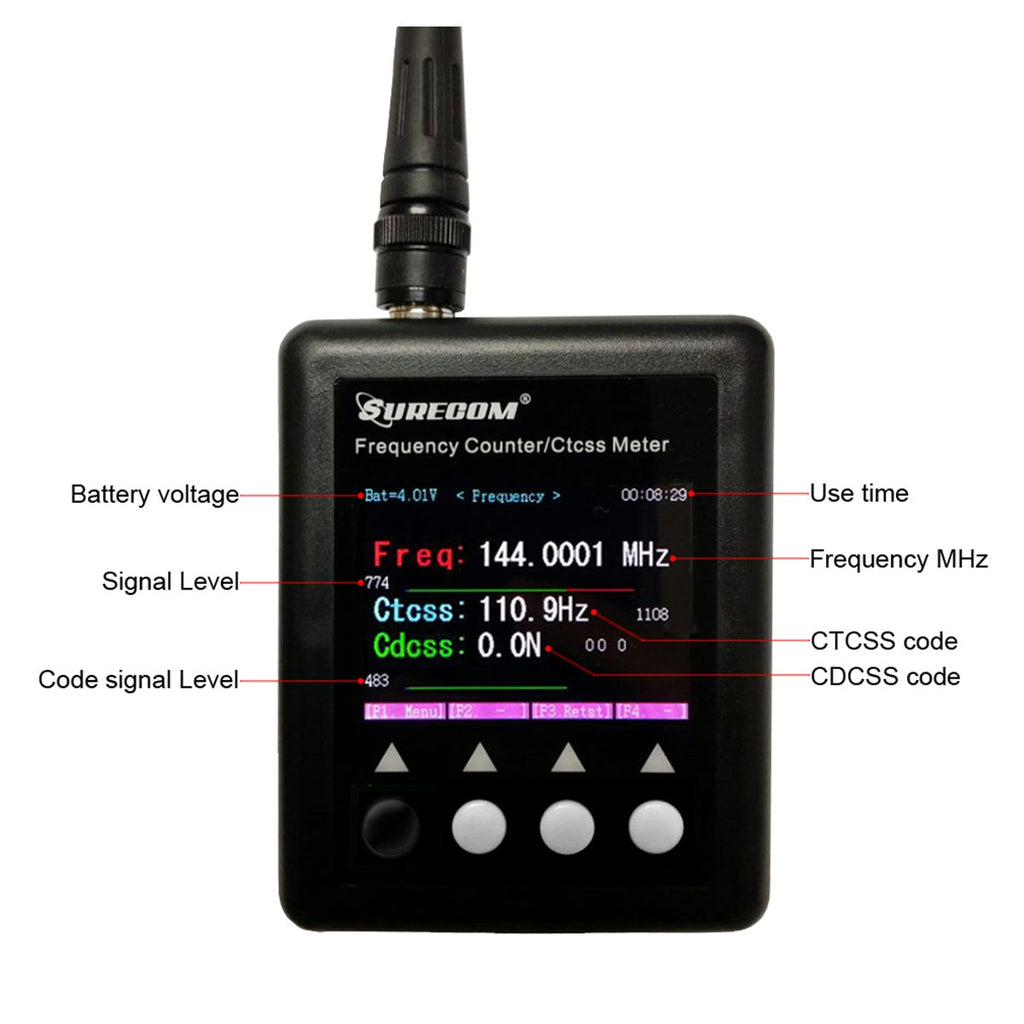

Press[ F3 Digital] from Measuring screen mode See PIC.1
Note: Use Digital mode have 3 Decimal only

MENU funtion setting and save. See PIC.4
Press [F1] > into menu Page
Press [F3 down] or [F4 Up] into System and Press [F2 Rtn] into system Page PIC.4
Press[F3 down] or [F4 Up] select funtion ,Press [F2 Edit] > [F3 - ][F4 +] change mode
Press[Menu] > [F1 ]to Exit or [F4 ] to Save and Exit



Menu Setting
Rf defect level:
The smaller the rf detect level, the more sensitive

How to check CTCSS/DCS code
1.Radio must be 136-174/400-520MHz
2.Radio must be ANALOG

CTCSS/DCS Decoder for ANALOG mode

CTCSS (Hz)
50.0 97.4 151.4 192.8
55.0 100.0 156.7 196.6
67.0 103.5 159.8 199.5
69.3 107.2 162.2 203.5
71.9 110.9 165.5 206.5
74.4 114.8 167.9 210.7
77.0 118.8 171.3 218.1
79.7 123.0 173.8 225.7
82.5 127.3 177.3 229.1
85.4 131.8 179.9 233.6
88.5 136.5 183.5 241.8
91.5 141.3 186.2 250.3
94.8 146.2 189.9 254.1



CDCSS for ANALOG mode (N code only)

Standard(N) sf401
check
  Standard(N) sf401
check
  Standard(N) sf401
check
  Standard(N) sf401
check
23 23 143 143   266 465 465
25 25   145 271 271 466 466
26 26 152 152   274 503 503
31 31 155 155 306 306 506 506
32 32 156 156 311 311 516 516
  36 162 162 315 315 532 532
43 43 165 165   325 546 546
47 47 172 172 331 331 565 565
51 51 174 174   332 606 606
  53 205 205 343 343 612 612
54 54   212 346 346 624 624
65 65 223 223 351 351 627 627
71 71   225   356 631 631
72 72 226 226 364 364 632 632
73 73 243 243 365 365 654 654
74 74 244 244 371 371 662 662
114 114 245 245 411 411 664 664
115 115   246 412 412 703 703
116 116 251 251 413 413 712 712
  122   252 423 423 723 723
125 125   255 431 431 731 731
131 131 261 261 432 432 732 732
132 132 263 263 445 445 734 734
134 134 265 265 464 464 743 743
754 754



New ver 4.0 Frequency Counter SF-401 PLUS SURECOM Portable CTCSS/DCS Decoder





Package Contents

1x SF401 PLUS Frequency Counter
1 x UHF Antenna
1x English User Manual
1x USB charger cable
1x USB AC adapter 100-240V

  • Warranty6-months warranty
